This is my Maxitronix 30in1. It's an electronics project lab kit with thirty projects to make for the purpose of learning electronics. I am in the process of working my way through it on my video blog In The Lab With Jay Jay, you can find out more below.

Projects

Here is the table of projects which have been done or are in the process of being made. As I make progress I will add new projects at the bottom of this table. The links to the latest videos go in before those videos are published so you might have to wait to see some of the latest videos until the day they are released.

Date	Project	Video	Show Notes
2025-03-18	Introduction	Introducing Maxitronix 30in1	Introducing Maxitronix 30in1
2025-09-04	Maxitronix-30in1-01	Intro Project	Intro Project
2025-09-11	Maxitronix-30in1-01	Intro Project Fix from Jason Jacques	Intro Project Fix from Jason Jacques
2025-09-18	Maxitronix-30in1-02	The Electronic Storage Tank	The Electronic Storage Tank
2025-10-09	Maxitronix-30in1-03	The One-Way Street	The One-Way Street
2025-11-06	Maxitronix-30in1-04	The “Invisible Power” Radio	The “Invisible Power” Radio

Components

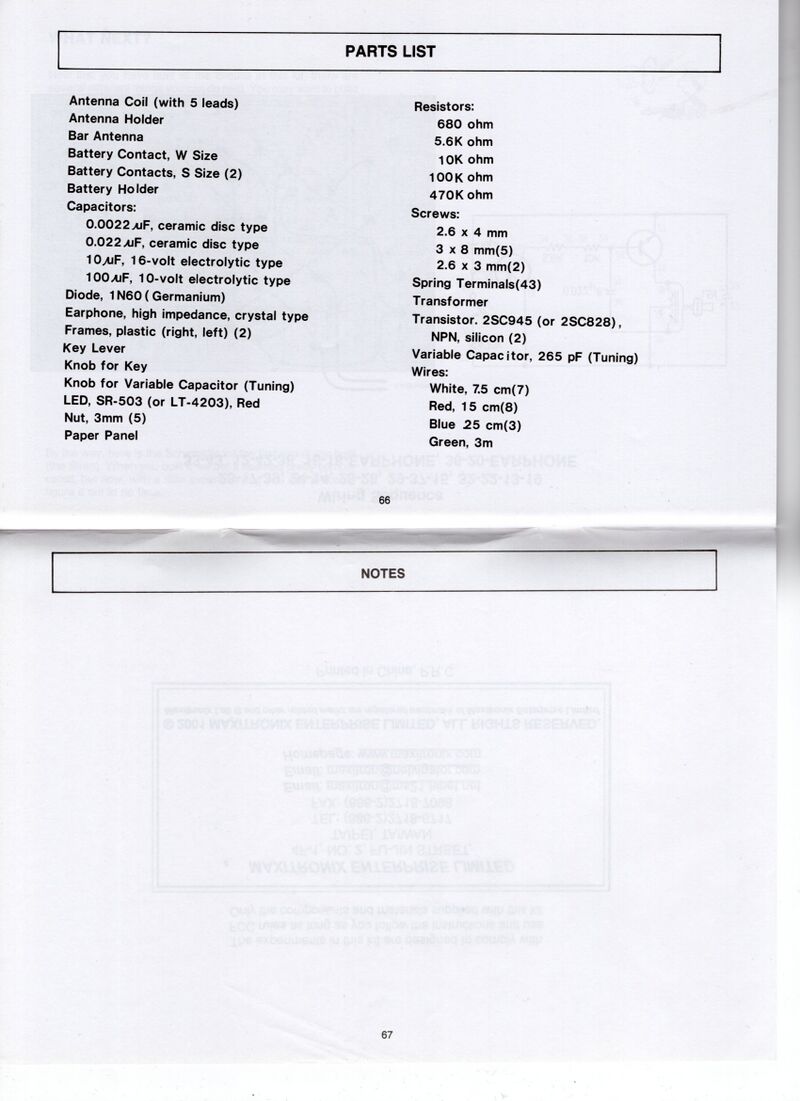

The kit comes with these components:

Ceramic capacitors are 0.0022µF, 0.022µF
Electrolytic capacitors are 16V 10µF, 10V 100µF
Germanium diode is 1N60
Earphone is high impedance crystal type
Red LED is SR-503 or LT-4203
1/4 Watt resistors are: 680Ω, 5.6kΩ, 10kΩ, 100kΩ, 470kΩ
Not sure what the specs are for the transformer
NPN transistors are 2SC945 or 2SC828
Tuning capacitor is 265pF

Photos

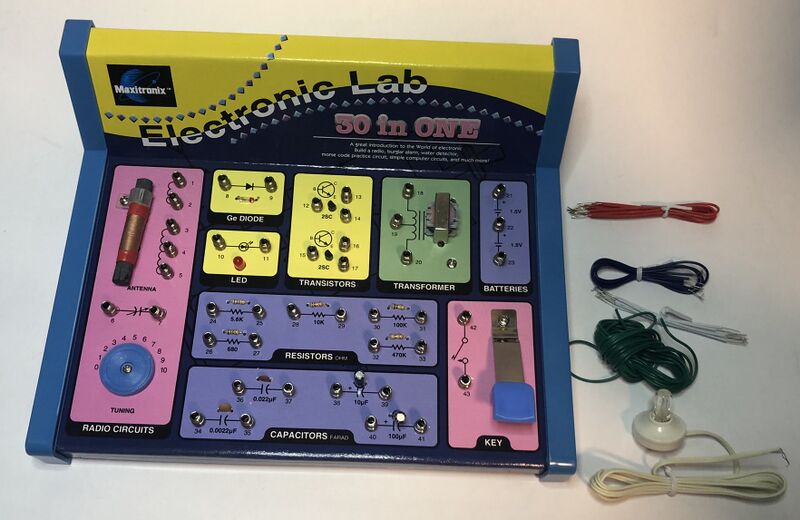

A photo of the box and the lab itself.

Scans

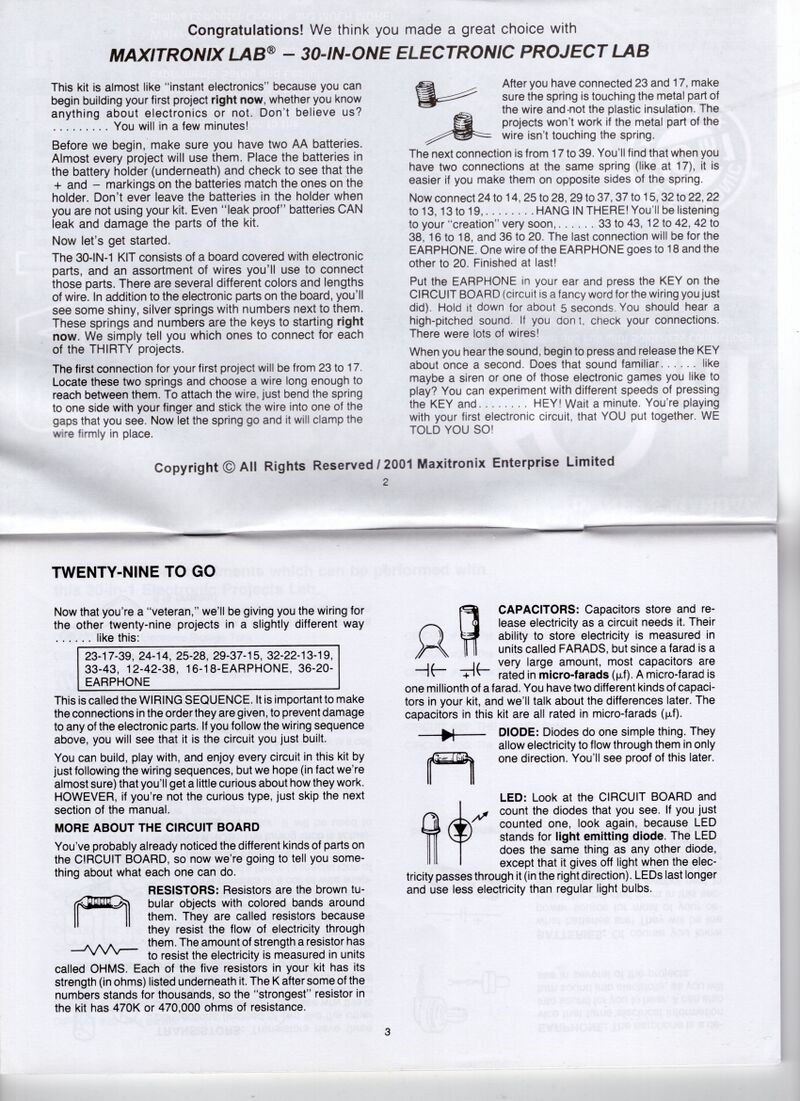

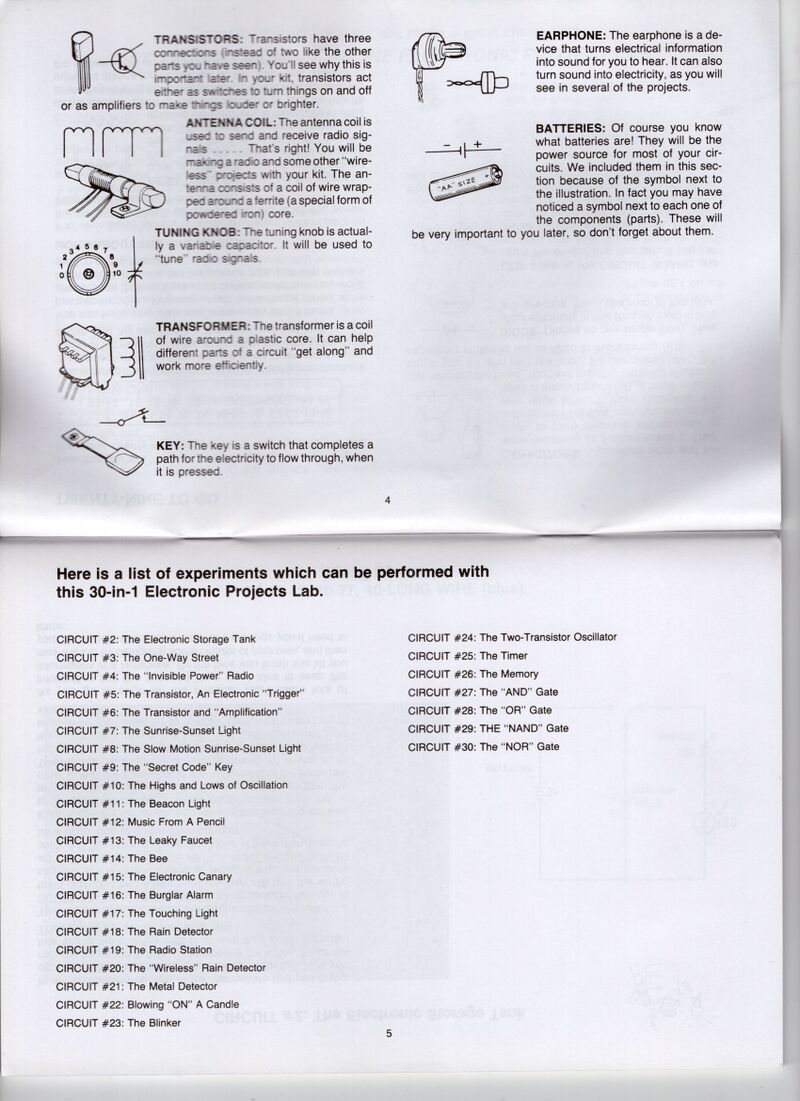

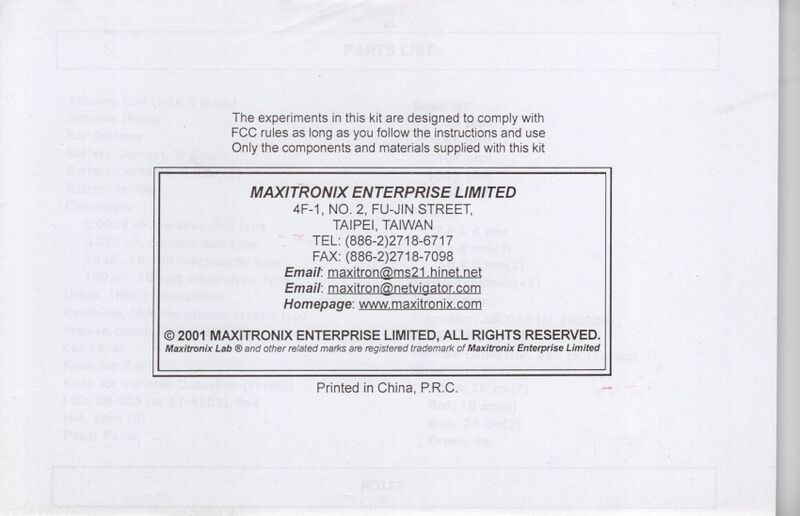

Following are some scans of the pages in the manual. Each project page has the scans for each project, these scans are just for the front and back matter.
