Maxitronix-30in1-19

This is project #19 of the Maxitronix-30in1: The Radio Station.

The KiCad files for this project are here:

• https://github.com/jj5/kicad-bench/tree/main/maxitronix/30in1/Maxitronix-30in1-19

See KiCad for some notes about my KiCad configuration.

Scans

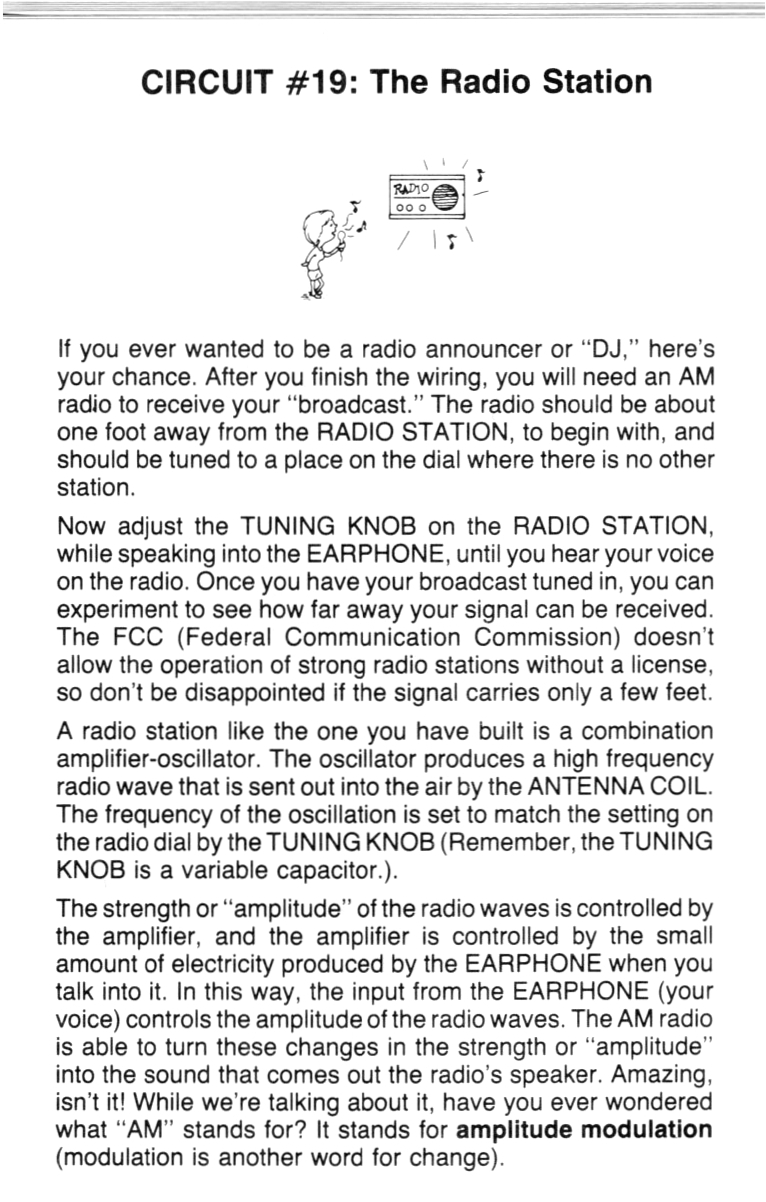

• Maxitronix-30in1-19-instructions.jpg

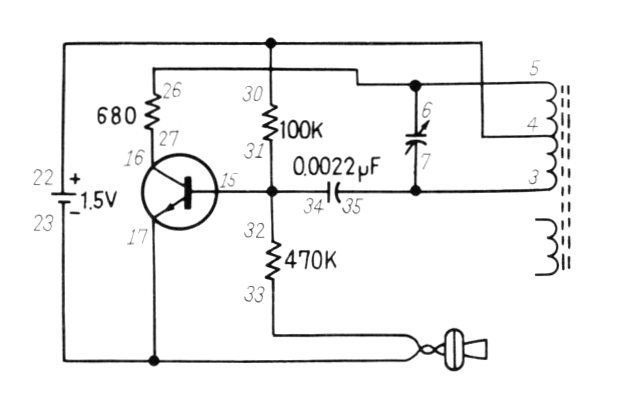

• Maxitronix-30in1-19-schematic.jpg

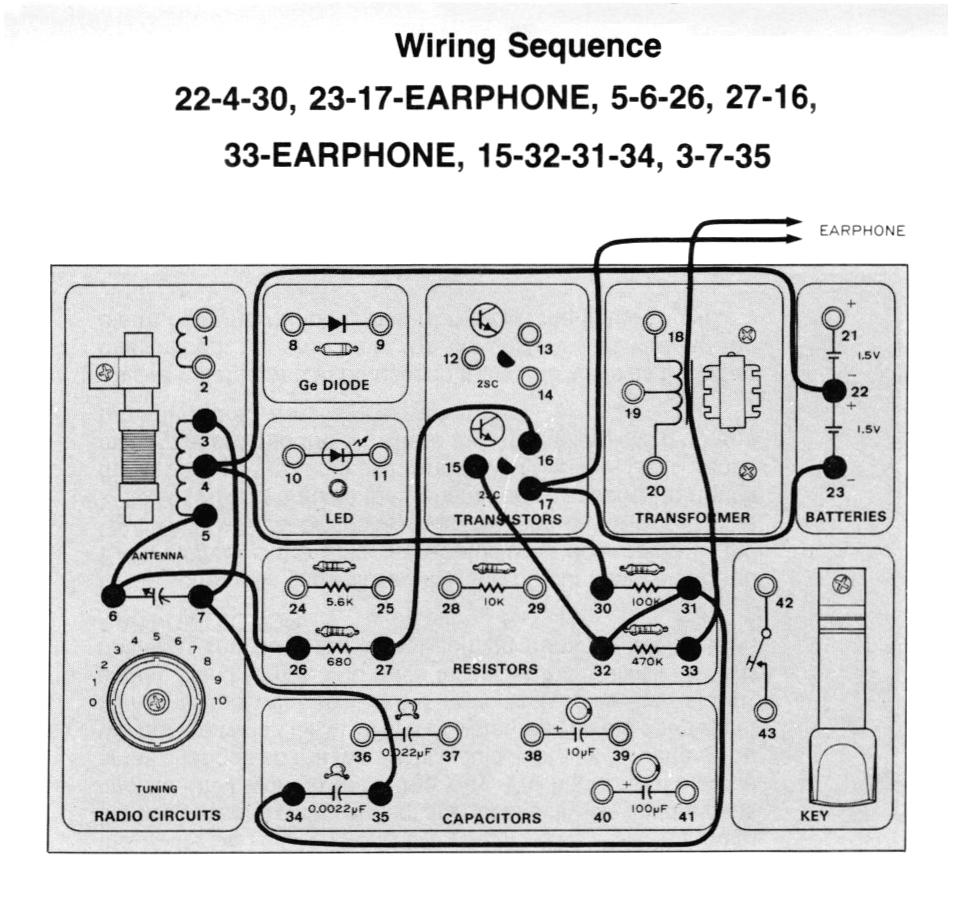

• Maxitronix-30in1-19-wiring.jpg
