Maxitronix-30in1-18

This is project #18 of the Maxitronix-30in1: The Rain Detector.

The KiCad files for this project are here:

• https://github.com/jj5/kicad-bench/tree/main/maxitronix/30in1/Maxitronix-30in1-18

See KiCad for some notes about my KiCad configuration.

Scans

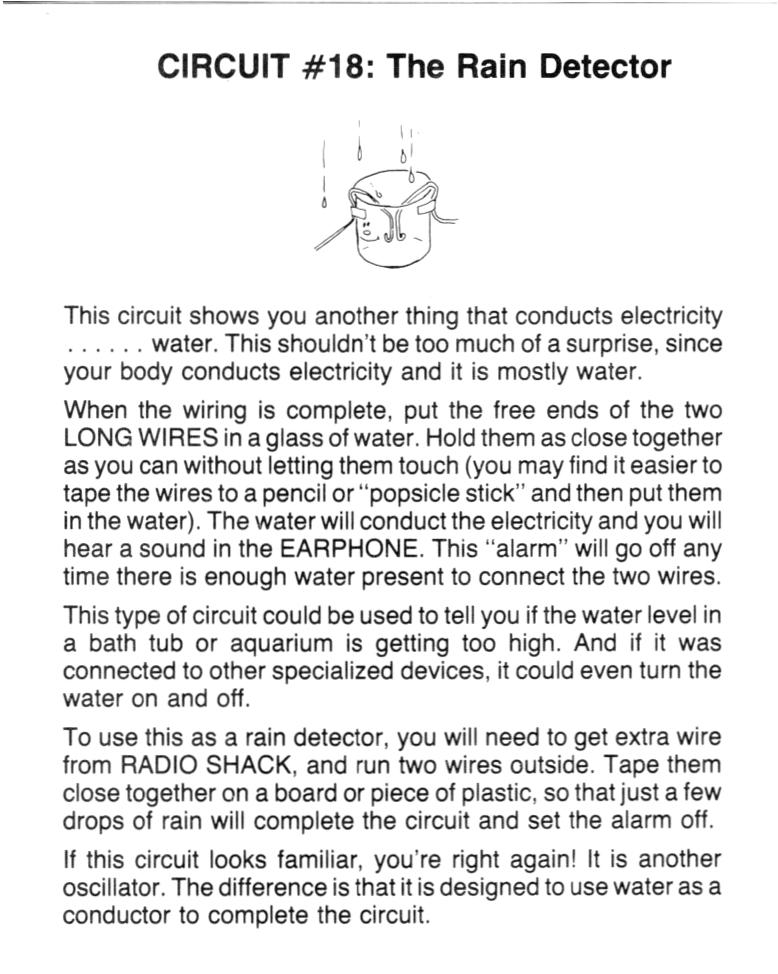

• Maxitronix-30in1-18-instructions.jpg

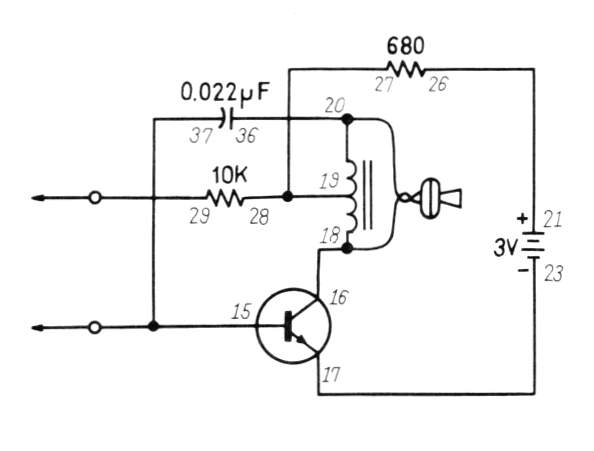

• Maxitronix-30in1-18-schematic.jpg

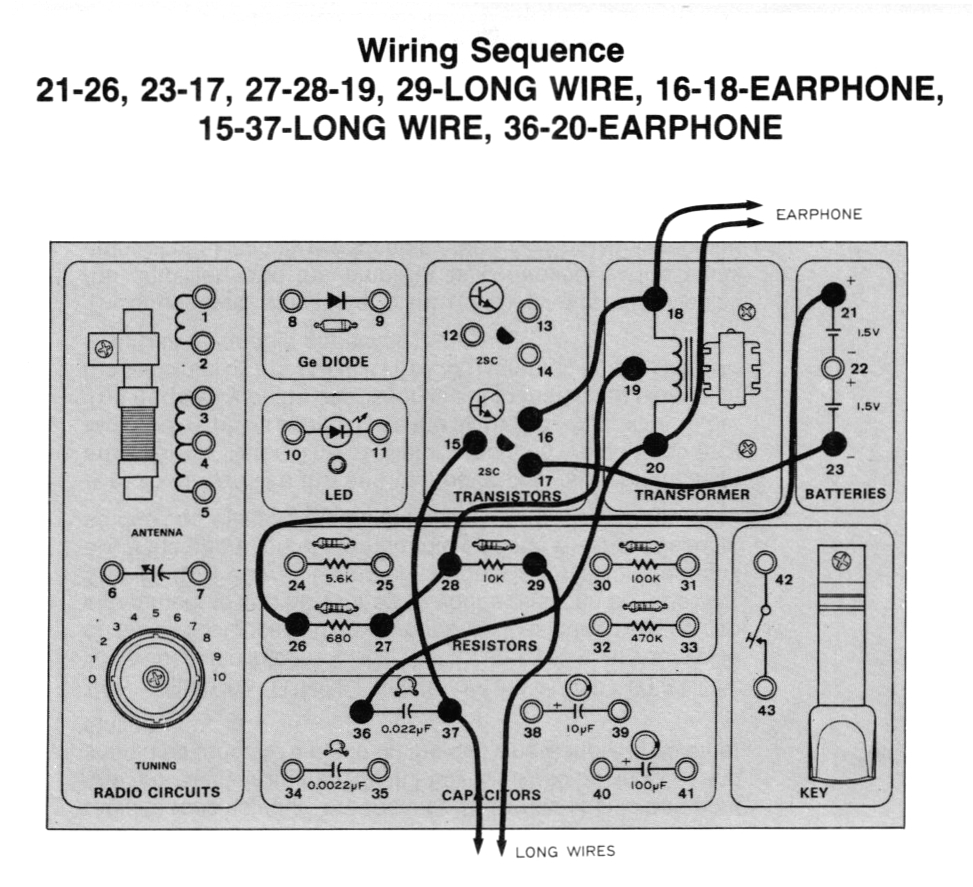

• Maxitronix-30in1-18-wiring.jpg
