Maxitronix-30in1-17

This is project #17 of the Maxitronix-30in1: The Touching Light.

The KiCad files for this project are here:

• https://github.com/jj5/kicad-bench/tree/main/maxitronix/30in1/Maxitronix-30in1-17

See KiCad for some notes about my KiCad configuration.

Scans

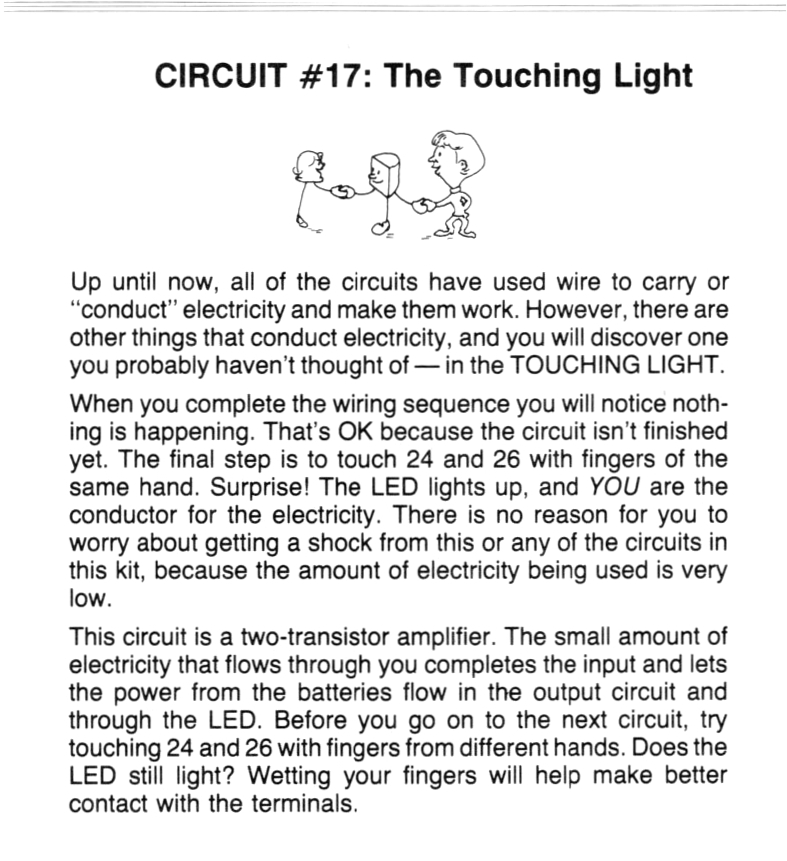

• Maxitronix-30in1-17-instructions.jpg

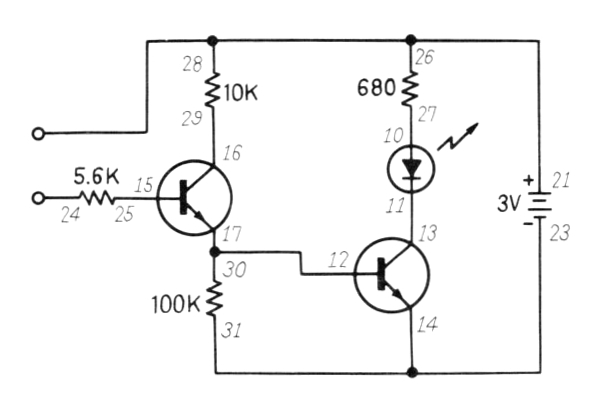

• Maxitronix-30in1-17-schematic.jpg

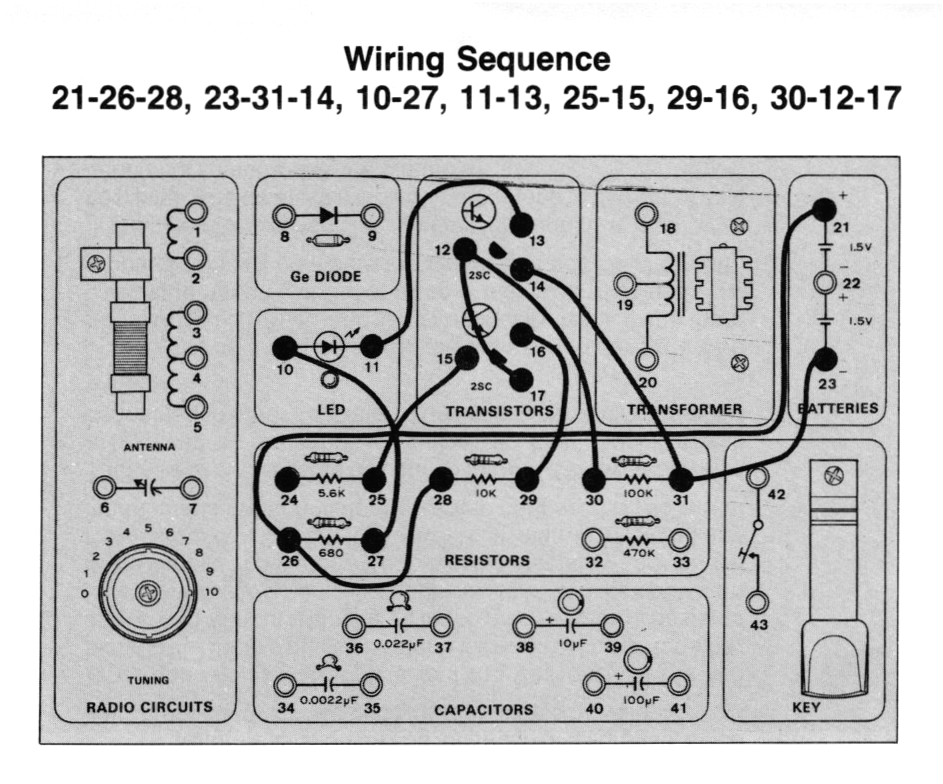

• Maxitronix-30in1-17-wiring.jpg
