This is project #20 of the Maxitronix-30in1: The Wireless Rain Detector.

See KiCad for some notes about my KiCad configuration. We didn't make a KiCad schematic for this project.

Scans

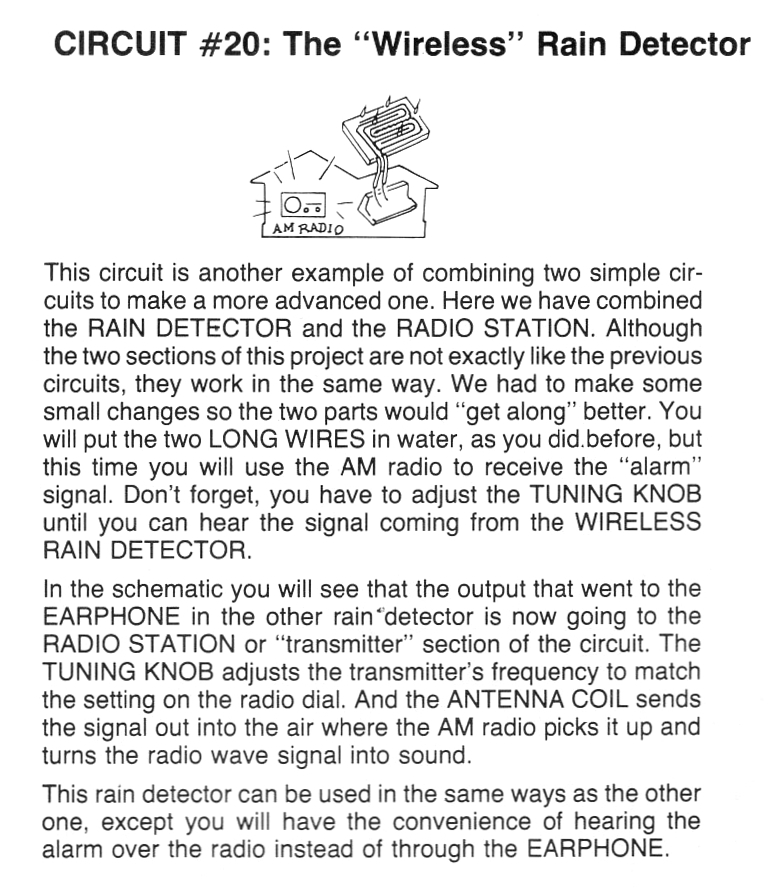

• Maxitronix-30in1-20-instructions.jpg

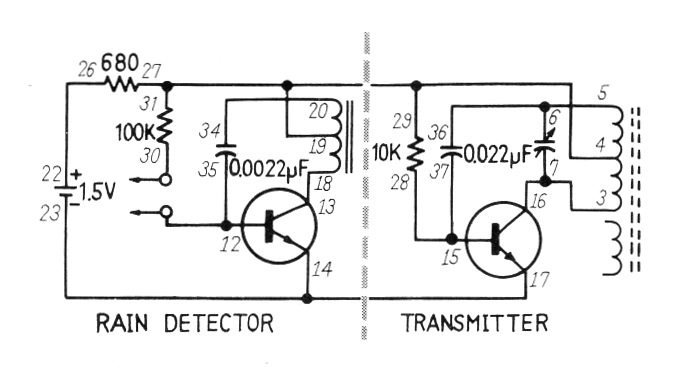

• Maxitronix-30in1-20-schematic.jpg

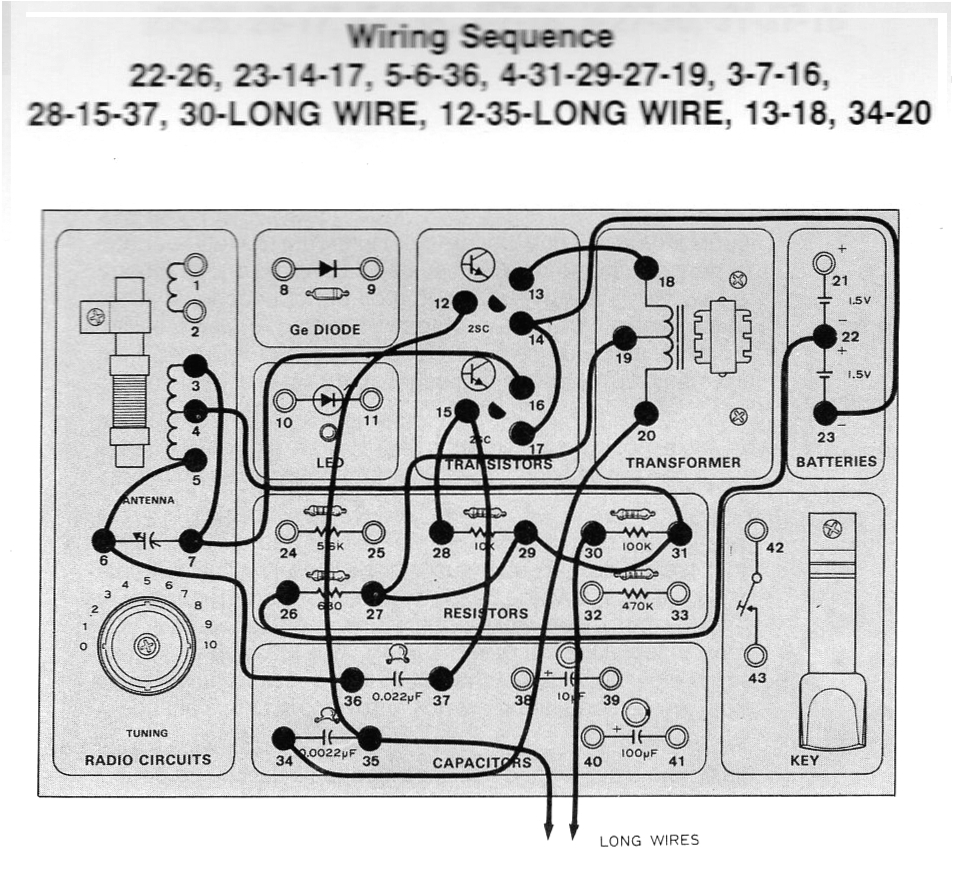

• Maxitronix-30in1-20-wiring.jpg
