Maxitronix-30in1-15

This is project #15 of the Maxitronix-30in1.

The KiCad files for this project are here:

• https://github.com/jj5/kicad-bench/tree/main/maxitronix/30in1/Maxitronix-30in1-15

See KiCad for some notes about my KiCad configuration.

Scans

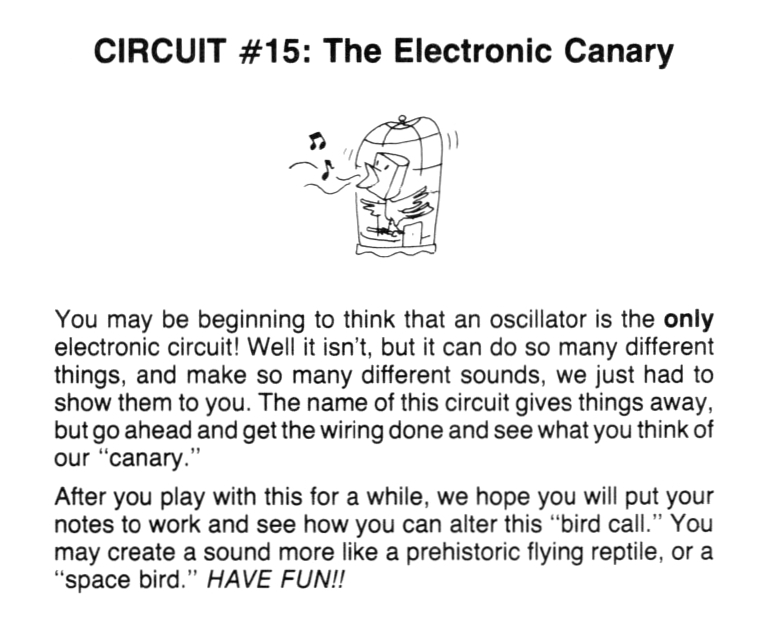

• Maxitronix-30in1-15-instructions.jpg

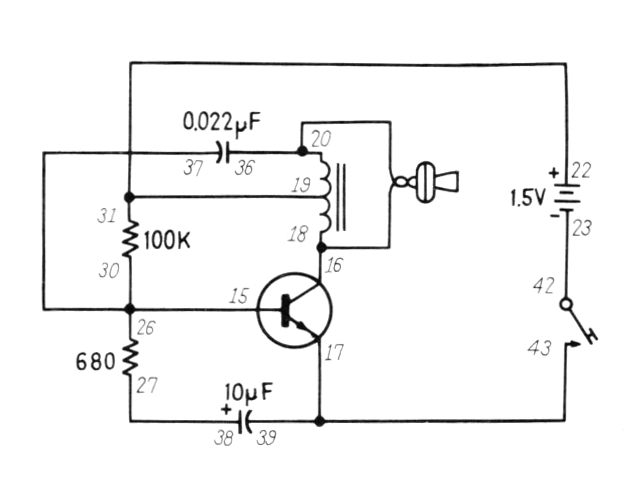

• Maxitronix-30in1-15-schematic.jpg

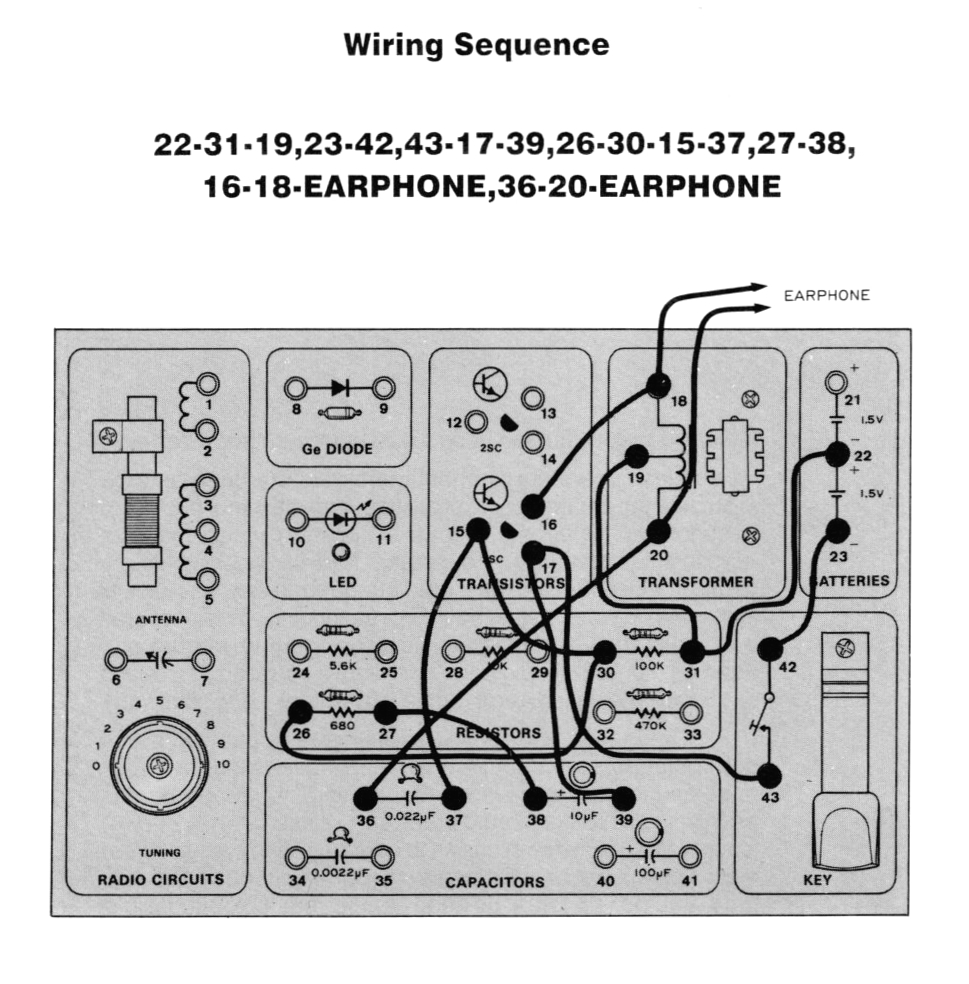

• Maxitronix-30in1-15-wiring.jpg
